该类是地图覆盖物Renderer的基类, 提供绘制overlay的接口但并无实际的实现（render相关方法只能在重写后的glRender方法中使用） More...

#import <MAOverlayRenderer.h>

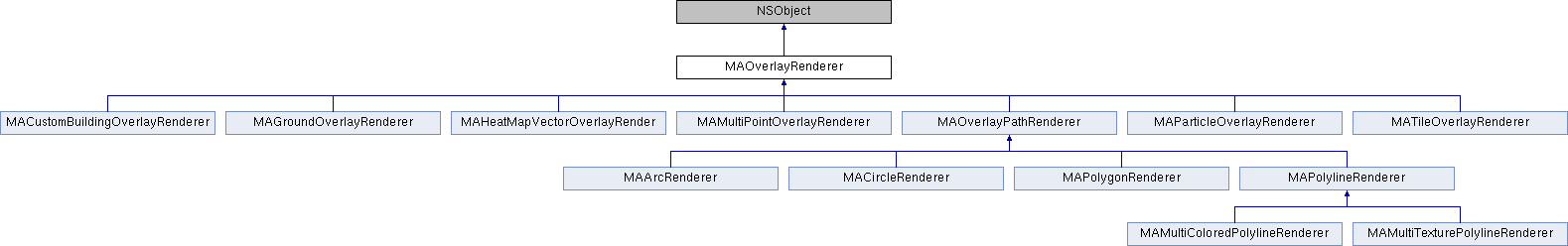

Inheritance diagram for MAOverlayRenderer:

Instance Methods
(instancetype)	- initWithOverlay:
	初始化并返回一个Overlay Renderer More...

(float *)	- getViewMatrix
	获取当前地图view矩阵，数组长度为16，无需外界释放. 需要添加至地图后，才能获取有效矩阵数据，否则返回NULL More...

(float *)	- getProjectionMatrix
	获取当前地图projection矩阵，数组长度为16，无需外界释放. 需要添加至地图后，才能获取有效矩阵数据，否则返回NULL More...

(MAMapPoint)	- getOffsetPoint
	获取当前地图中心点偏移，用以把地图坐标转换为gl坐标。需要添加到地图获取才有效。（since 5.1.0） More...

(CGFloat)	- getMapZoomLevel
	获取当前地图缩放级别，需要添加到地图获取才有效。（since 5.1.0） More...

(CGPoint)	- glPointForMapPoint:
	将MAMapPoint转换为opengles可以直接使用的坐标 More...

(CGPoint *)	- glPointsForMapPoints:count:
	批量将MAMapPoint转换为opengles可以直接使用的坐标 More...

(CGFloat)	- glWidthForWindowWidth:
	将屏幕尺寸转换为OpenGLES尺寸 More...

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:
	使用OpenGLES 绘制线 More...

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:LineJoinType:LineCapType:lineDash:
	使用OpenGLES 绘制线 More...

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:
	使用OpenGLES 按指定纹理绘制线 More...

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureIDs:drawStyleIndexes:looped:
	使用OpenGLES 绘制多纹理线 More...

(void)	- renderLinesWithPoints:pointCount:strokeColors:drawStyleIndexes:isGradient:lineWidth:looped:LineJoinType:LineCapType:lineDash:
	使用OpenGLES 绘制多段颜色线 More...

(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:
	使用OpenGLES 绘制区域 More...

(void)	- renderStrokedRegionWithPoints:pointCount:fillColor:strokeColor:strokeLineWidth:strokeLineJoinType:strokeLineDash:usingTriangleFan:
	使用OpenGLES 绘制区域(带轮廓线) 注意：strokeLineWidth为0 或 strokeColor为nil 时不绘制轮廓线。 More...

(void)	- renderTextureStrokedRegionWithPoints:pointCount:fillColor:strokeTineWidth:strokeTextureID:usingTriangleFan:
	使用OpenGLES 绘制区域(带纹理轮廓线) 注意：strokeLineWidth为0 或 strokeTexture为0 时不绘制轮廓线。 More...

(void)	- renderIconWithTextureID:points:
	使用OpenGLES 绘制图片 More...

(void)	- renderIconWithTextureID:points:modulateColor:
	使用OpenGLES 绘制图片 More...

(void)	- glRender
	绘制函数(子类需要重载来实现) More...

(GLuint)	- loadStrokeTextureImage:
	加载纹理图片，纹理ID存储在成员strokeTextureID中。纹理图片为nil时，清空原有纹理 More...

(GLuint)	- loadTexture:
	加载纹理图片（since 5.1.0） More...

(void)	- deleteTexture:
	删除纹理（since 5.1.0） More...

(void)	- setNeedsUpdate
	当关联overlay对象有更新时，调用此接口刷新. since 5.0.0 More...

Protected Attributes
GLuint	_strokeTextureID

CGSize	_strokeTextureSize

BOOL	_needsUpdate

BOOL	_needsLoadStrokeTexture

Properties
id< MAOverlayRenderDelegate >	rendererDelegate
	由地图添加时，不要手动设置。如果不是使用mapview进行添加，则需要手动设置。（since 5.1.0） More...

id< MAOverlay >	overlay
	关联的overlay对象 More...

UIImage *	strokeImage
	用于生成笔触纹理id的图片（支持非PowerOfTwo图片; 如果您需要减轻绘制产生的锯齿,您可以参考AMap.bundle中的traffic_texture_blue.png的方式,在image两边增加部分透明像素.)。（since 5.3.0） More...

GLuint	strokeTextureID
	笔触纹理id, 修改纹理id参考, 如果strokeImage未指定、尚未加载或加载失败返回0 More...

CGFloat	alpha
	透明度[0，1]，默认为1. 使用MAOverlayRenderer类提供的渲染接口会自动应用此属性。（since 5.1.0） More...

CGFloat	contentScale
	overlay渲染的scale。（since 5.1.0） More...

Detailed Description

该类是地图覆盖物Renderer的基类, 提供绘制overlay的接口但并无实际的实现（render相关方法只能在重写后的glRender方法中使用）

Method Documentation

◆ deleteTexture:

- (void) deleteTexture: (GLuint) textureId

删除纹理（since 5.1.0）

Parameters

textureId 纹理ID

◆ getMapZoomLevel

- (CGFloat) getMapZoomLevel

获取当前地图缩放级别，需要添加到地图获取才有效。（since 5.1.0）

Returns: 缩放级别

◆ getOffsetPoint

- (MAMapPoint) getOffsetPoint

获取当前地图中心点偏移，用以把地图坐标转换为gl坐标。需要添加到地图获取才有效。（since 5.1.0）

Returns: 偏移

◆ getProjectionMatrix

- (float *) getProjectionMatrix

获取当前地图projection矩阵，数组长度为16，无需外界释放. 需要添加至地图后，才能获取有效矩阵数据，否则返回NULL

Returns: 矩阵数组

◆ getViewMatrix

- (float *) getViewMatrix

获取当前地图view矩阵，数组长度为16，无需外界释放. 需要添加至地图后，才能获取有效矩阵数据，否则返回NULL

Returns: 矩阵数组

◆ glPointForMapPoint:

- (CGPoint) glPointForMapPoint: (MAMapPoint) mapPoint

将MAMapPoint转换为opengles可以直接使用的坐标

Parameters

mapPoint MAMapPoint坐标

Returns: 直接支持的坐标

◆ glPointsForMapPoints:count:

- (CGPoint *) glPointsForMapPoints:	(MAMapPoint *)	mapPoints
count:	(NSUInteger)	count

批量将MAMapPoint转换为opengles可以直接使用的坐标

Parameters

mapPoints	MAMapPoint坐标数据指针
count	个数

Returns: 直接支持的坐标数据指针(需要调用者手动释放)

◆ glRender

- (void) glRender

绘制函数(子类需要重载来实现)

◆ glWidthForWindowWidth:

- (CGFloat) glWidthForWindowWidth: (CGFloat) windowWidth

将屏幕尺寸转换为OpenGLES尺寸

Parameters

windowWidth 屏幕尺寸

Returns: OpenGLES尺寸

◆ initWithOverlay:

- (instancetype) initWithOverlay: (id< MAOverlay >) overlay

初始化并返回一个Overlay Renderer

Parameters

overlay 关联的overlay对象

Returns: 初始化成功则返回overlay view,否则返回nil

◆ loadStrokeTextureImage:

- (GLuint) loadStrokeTextureImage: (UIImage *) textureImage

加载纹理图片，纹理ID存储在成员strokeTextureID中。纹理图片为nil时，清空原有纹理

Parameters

textureImage 纹理图片（需满足：长宽相等，且宽度值为2的次幂）。若为nil，则清空原有纹理

Returns: openGL纹理ID, 若纹理加载失败返回0

◆ loadTexture:

- (GLuint) loadTexture: (UIImage *) textureImage

加载纹理图片（since 5.1.0）

Parameters

textureImage 纹理图片（需满足：长宽相等，且宽度值为2的次幂)

Returns: openGL纹理ID, 若纹理加载失败返回0

◆ renderIconWithTextureID:points:

- (void) renderIconWithTextureID:	(GLuint)	textureID
points:	(CGPoint *)	points

使用OpenGLES 绘制图片

Parameters

textureID	OpenGLES纹理ID
points	OpenGLES坐标系点指针,纹理矩形的四个顶点坐标,其第一个坐标为图片左上角，依次顺时针传入其他顶点 ,参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count

◆ renderIconWithTextureID:points:modulateColor:

- (void) renderIconWithTextureID:	(GLuint)	textureID
points:	(CGPoint *)	points
modulateColor:	(UIColor *)	modulateColor

使用OpenGLES 绘制图片

Parameters

textureID	OpenGLES纹理ID
points	OpenGLES坐标系点指针,纹理矩形的四个顶点坐标,其第一个坐标为图片左上角，依次顺时针传入其他顶点 ,参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
modulateColor	调节颜色值, 最终颜色 = 纹理色 * modulateColor. 如只需要调节alpha的话就设置为[red=1, green=1, blue=1, alpha=0.5]

◆ renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:

- (void) renderLinesWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
strokeColor:	(UIColor *)	strokeColor
lineWidth:	(CGFloat)	lineWidth
looped:	(BOOL)	looped

使用OpenGLES 绘制线

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
strokeColor	线颜色
lineWidth	OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
looped	是否闭合, 如polyline会设置NO, polygon会设置YES

◆ renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:LineJoinType:LineCapType:lineDash:

- (void) renderLinesWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
strokeColor:	(UIColor *)	strokeColor
lineWidth:	(CGFloat)	lineWidth
looped:	(BOOL)	looped
LineJoinType:	(MALineJoinType)	lineJoinType
LineCapType:	(MALineCapType)	lineCapType
lineDash:	(MALineDashType)	lineDash

使用OpenGLES 绘制线

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
strokeColor	线颜色
lineWidth	OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
looped	是否闭合, 如polyline会设置NO, polygon会设置YES
lineJoinType	线连接点样式
lineCapType	线端点样式
lineDash	虚线类型

◆ renderLinesWithPoints:pointCount:strokeColors:drawStyleIndexes:isGradient:lineWidth:looped:LineJoinType:LineCapType:lineDash:

- (void) renderLinesWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
strokeColors:	(NSArray *)	strokeColors
drawStyleIndexes:	(NSArray *)	drawStyleIndexes
isGradient:	(BOOL)	isGradient
lineWidth:	(CGFloat)	lineWidth
looped:	(BOOL)	looped
LineJoinType:	(MALineJoinType)	lineJoinType
LineCapType:	(MALineCapType)	lineCapType
lineDash:	(MALineDashType)	lineDash

使用OpenGLES 绘制多段颜色线

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
strokeColors	各段指定的颜色
drawStyleIndexes	颜色索引数组，成员为NSNumber,且为非负数，负数按0处理
isGradient	颜色是否渐变
lineWidth	线OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
looped	是否闭合, 如polyline会设置NO, polygon会设置YES
lineJoinType	线连接点样式
lineCapType	线端点样式
lineDash	虚线类型

◆ renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:

- (void) renderRegionWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
fillColor:	(UIColor *)	fillColor
usingTriangleFan:	(BOOL)	usingTriangleFan

使用OpenGLES 绘制区域

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
fillColor	填充颜色
usingTriangleFan	若必为凸多边形输入YES，可能为凹多边形输入NO

◆ renderStrokedRegionWithPoints:pointCount:fillColor:strokeColor:strokeLineWidth:strokeLineJoinType:strokeLineDash:usingTriangleFan:

- (void) renderStrokedRegionWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
fillColor:	(UIColor *)	fillColor
strokeColor:	(UIColor *)	strokeColor
strokeLineWidth:	(CGFloat)	strokeLineWidth
strokeLineJoinType:	(MALineJoinType)	strokeLineJoinType
strokeLineDash:	(MALineDashType)	strokeLineDash
usingTriangleFan:	(BOOL)	usingTriangleFan

使用OpenGLES 绘制区域(带轮廓线)
注意：strokeLineWidth为0 或 strokeColor为nil 时不绘制轮廓线。

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
fillColor	填充颜色
strokeColor	轮廓线颜色
strokeLineWidth	轮廓线宽。OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
strokeLineJoinType	轮廓线连接点样式
strokeLineDash	轮廓虚线类型
usingTriangleFan	若必为凸多边形输入YES，可能为凹多边形输入NO

◆ renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:

- (void) renderTexturedLinesWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
lineWidth:	(CGFloat)	lineWidth
textureID:	(GLuint)	textureID
looped:	(BOOL)	looped

使用OpenGLES 按指定纹理绘制线

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
lineWidth	线OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
textureID	指定的纹理
looped	是否闭合, 如polyline会设置NO, polygon会设置YES

◆ renderTexturedLinesWithPoints:pointCount:lineWidth:textureIDs:drawStyleIndexes:looped:

- (void) renderTexturedLinesWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
lineWidth:	(CGFloat)	lineWidth
textureIDs:	(NSArray *)	textureIDs
drawStyleIndexes:	(NSArray *)	drawStyleIndexes
looped:	(BOOL)	looped

使用OpenGLES 绘制多纹理线

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
lineWidth	线OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
textureIDs	各段指定的纹理使用- (BOOL)loadStrokeTextureImages:(NSArray *)textureImages;加载,在strokeTextureIDs属性中获取
drawStyleIndexes	纹理索引数组，成员为NSNumber,且为非负数，负数按0处理
looped	是否闭合, 如polyline会设置NO, polygon会设置YES

◆ renderTextureStrokedRegionWithPoints:pointCount:fillColor:strokeTineWidth:strokeTextureID:usingTriangleFan:

- (void) renderTextureStrokedRegionWithPoints:	(CGPoint *)	points
pointCount:	(NSUInteger)	pointCount
fillColor:	(UIColor *)	fillColor
strokeTineWidth:	(CGFloat)	strokeLineWidth
strokeTextureID:	(GLuint)	strokeTexture
usingTriangleFan:	(BOOL)	usingTriangleFan

使用OpenGLES 绘制区域(带纹理轮廓线)
注意：strokeLineWidth为0 或 strokeTexture为0 时不绘制轮廓线。

Parameters

points	OpenGLES坐标系点指针, 参考- (CGPoint)glPointForMapPoint:mapPoint, - (CGPoint )glPointsForMapPoints:(MAMapPoint )mapPoints count:(NSUInteger)count
pointCount	点个数
fillColor	填充颜色
strokeLineWidth	轮廓线宽。OpenGLES支持线宽尺寸, 参考 - (CGFloat)glWidthForWindowWidth:windowWidth
strokeTexture	轮廓线纹理。使用- (void)loadStrokeTextureImage:textureImage;加载
usingTriangleFan	若必为凸多边形输入YES，可能为凹多边形输入NO

◆ setNeedsUpdate

- (void) setNeedsUpdate

当关联overlay对象有更新时，调用此接口刷新. since 5.0.0

Member Data Documentation

◆ _needsLoadStrokeTexture

- (BOOL) _needsLoadStrokeTexture

protected

◆ _needsUpdate

- (BOOL) _needsUpdate

protected

◆ _strokeTextureID

- (GLuint) _strokeTextureID

protected

◆ _strokeTextureSize

- (CGSize) _strokeTextureSize

protected

Property Documentation

◆ alpha

- (CGFloat) alpha

readwritenonatomicassign

透明度[0，1]，默认为1. 使用MAOverlayRenderer类提供的渲染接口会自动应用此属性。（since 5.1.0）

◆ contentScale

- (CGFloat) contentScale

readnonatomicassign

overlay渲染的scale。（since 5.1.0）

◆ overlay

- (id<MAOverlay>) overlay

readnonatomicretain

关联的overlay对象

◆ rendererDelegate

- (id<MAOverlayRenderDelegate>) rendererDelegate

readwritenonatomicweak

由地图添加时，不要手动设置。如果不是使用mapview进行添加，则需要手动设置。（since 5.1.0）

◆ strokeImage

- (UIImage*) strokeImage

readwritenonatomicstrong

用于生成笔触纹理id的图片（支持非PowerOfTwo图片; 如果您需要减轻绘制产生的锯齿,您可以参考AMap.bundle中的traffic_texture_blue.png的方式,在image两边增加部分透明像素.)。（since 5.3.0）

◆ strokeTextureID

- (GLuint) strokeTextureID

readnonatomicassign

笔触纹理id, 修改纹理id参考, 如果strokeImage未指定、尚未加载或加载失败返回0

The documentation for this class was generated from the following file:

MAOverlayRenderer.h

Instance Methods

Protected Attributes

Properties

Detailed Description

Method Documentation

◆ deleteTexture:

◆ getMapZoomLevel

◆ getOffsetPoint

◆ getProjectionMatrix

◆ getViewMatrix

◆ glPointForMapPoint:

◆ glPointsForMapPoints:count:

◆ glRender

◆ glWidthForWindowWidth:

◆ initWithOverlay:

◆ loadStrokeTextureImage:

◆ loadTexture:

◆ renderIconWithTextureID:points:

◆ renderIconWithTextureID:points:modulateColor:

◆ renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:

◆ renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:LineJoinType:LineCapType:lineDash:

◆ renderLinesWithPoints:pointCount:strokeColors:drawStyleIndexes:isGradient:lineWidth:looped:LineJoinType:LineCapType:lineDash:

◆ renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:

◆ renderStrokedRegionWithPoints:pointCount:fillColor:strokeColor:strokeLineWidth:strokeLineJoinType:strokeLineDash:usingTriangleFan:

◆ renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:

◆ renderTexturedLinesWithPoints:pointCount:lineWidth:textureIDs:drawStyleIndexes:looped:

◆ renderTextureStrokedRegionWithPoints:pointCount:fillColor:strokeTineWidth:strokeTextureID:usingTriangleFan:

◆ setNeedsUpdate

Member Data Documentation

◆ _needsLoadStrokeTexture

◆ _needsUpdate

◆ _strokeTextureID

◆ _strokeTextureSize

Property Documentation

◆ alpha

◆ contentScale

◆ overlay

◆ rendererDelegate

◆ strokeImage

◆ strokeTextureID
