MAHeatMapTileOverlay Class Reference
#import <MAHeatMapTileOverlay.h>

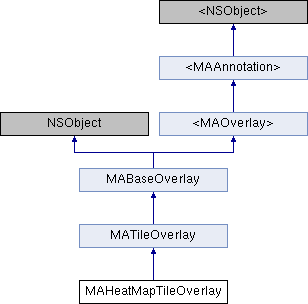

Inheritance diagram for MAHeatMapTileOverlay:
Properties | |
| NSArray< MAHeatMapNode * > * | data |
| MAHeatMapNode array. More... | |
| NSInteger | radius |
| CGFloat | opacity |
| MAHeatMapGradient * | gradient |
| BOOL | allowRetinaAdapting |
 Properties inherited from MATileOverlay | |
| CGSize | tileSize |
| NSString * | URLTemplate |
| BOOL | canReplaceMapContent |
| BOOL | disableOffScreenTileLoading |
| Properties inherited from MABaseOverlay | |
| CLLocationCoordinate2D | coordinate |
| MAMapRect | boundingMapRect |
| double | altitude |
| Properties inherited from <MAAnnotation> | |
| NSString * | title |
| NSString * | subtitle |
| double | altitude |
Additional Inherited Members | |
| Instance Methods inherited from MATileOverlay | |
| (NSInteger minimumZ) | - __attribute |
| (NSInteger maximumZ) | - __attribute |
| (id) | - initWithURLTemplate: |
| 根据指定的URLTemplate生成tileOverlay Generate tileOverlay based on the specified URLTemplate More... | |
| (NSURL *) | - URLForTilePath: |
| 以tile path生成URL。用于加载tile,此方法默认填充URLTemplate Generate URL from tile path. Used to load tiles, this method defaults to filling URLTemplate More... | |
| (void) | - loadTileAtPath:result: |
| 加载被请求的tile,并以tile数据或加载tile失败error访问回调block;默认实现为首先用URLForTilePath去获取URL,然后用异步NSURLConnection加载tile Load the requested tile and access the callback block with tile data or a tile loading failure error; the default implementation first uses URLForTilePath to obtain the URL, then loads the tile asynchronously with NSURLConnection. More... | |
| (void) | - cancelLoadOfTileAtPath: |
| 取消请求瓦片，当地图显示区域发生变化时，会取消显示区域外的瓦片的下载, 当disableOffScreenTileLoading=YES时会被调用。since 5.3.0 Cancel tile requests, when the map display area changes, it will cancel the download of tiles outside the display area, and it will be called when disableOffScreenTileLoading=YES. since 5.3.0 More... | |
| Instance Methods inherited from <MAOverlay> | |
| (CLLocationCoordinate2D) | - coordinate |
| (MAMapRect) | - boundingMapRect |
| Instance Methods inherited from <MAAnnotation> | |
| (void) | - setCoordinate: |
| 设置标注的坐标，在拖拽时会被调用. Set the coordinates of the annotation, which will be called during dragging More... | |
| Protected Attributes inherited from MABaseOverlay | |
| double | _altitude |
| 海拔 Elevation More... | |
Detailed Description
热力图tileOverlay Heatmap tileOverlay
Property Documentation
◆ allowRetinaAdapting
|
readwritenonatomicassign |
是否开启高清热力图，默认关闭 Whether to enable high-definition heatmap, default is off
◆ data
|
readwritenonatomicstrong |
MAHeatMapNode array.
◆ gradient
|
readwritenonatomicstrong |
热力图梯度 Heatmap gradient
◆ opacity
|
readwritenonatomicassign |
透明度，默认为0.6，范围：0-1 Opacity, default is 0.6, range: 0-1
◆ radius
|
readwritenonatomicassign |
热力图半径，默认为12，范围:10-200 screen point Heatmap radius, default is 12, range: 10-200 screen points
The documentation for this class was generated from the following file:
